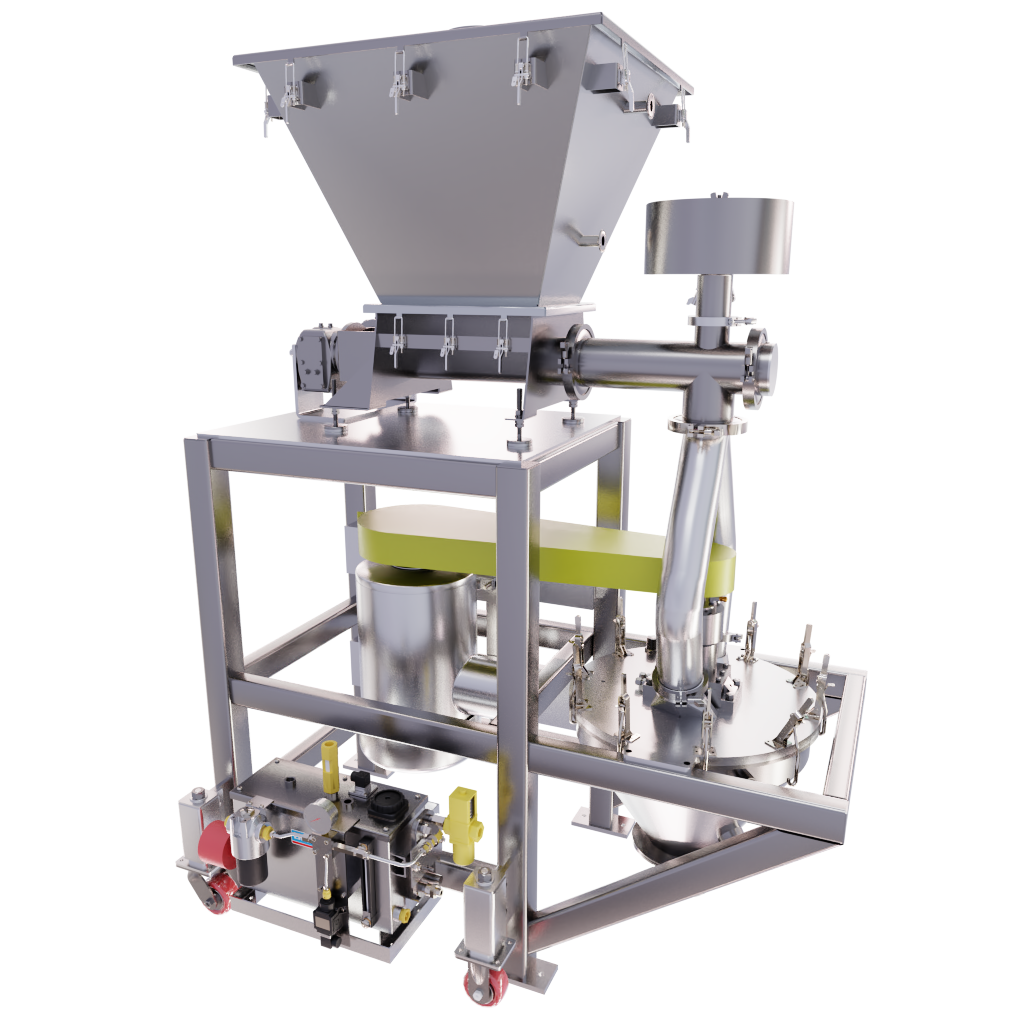

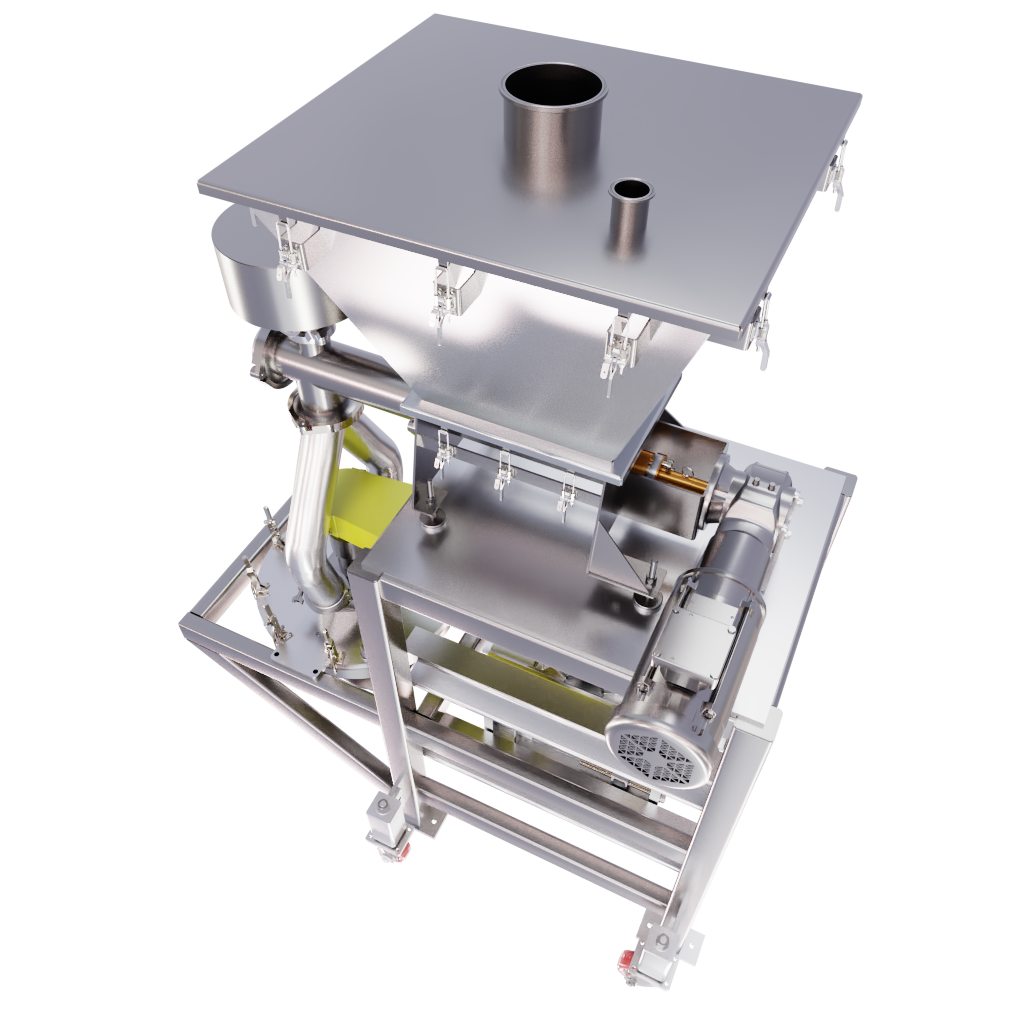

Simpactor FID pin mill is a specifically designed USDA type impact mill
for milling dry food ingredients such as flour, sugar, preservatives, flavor enhancers, nutrients, thickeners, and other general food applications
usda approved sanitary design
Heavy duty 304 or 316 SS contact part construction, a #4 internal surface finish with no exposed threads or socket head cap screws. Also uses high temperature synthetic food based grease for bearing spindle.
Eliminate material buildup with no dead zones
There are no material trap points or screens which help to eliminate material build up and food contamination.
Easily disassembles by hand with no tools
Quick disconnect clamps to open mill cone hopper and quick disconnect for cone hopper removal.
Low Pressure Washdown Design
Easy wash down cleaning including suitable electric components are available.
Product Fineness: 325 mesh - 50 mesh
The force imparted to the material is controlled by the speed of the rotor. For finer products, the rotor speed would be high and for coarser products or products thar need gentler handling the rotor speed would be low. We recommend a variable speed controller for easy speed changes.
feed capacity: 4 tph - 40 tph
The Simpactor FID is available in three sizes to accommodate a range of capacity requirements.
We are committed to being the premier global provider of material processing solutions for both conventional and leading-edge size reduction and air classification challenges around the world. Your success is our success and it all starts by delivering you the highest quality industrial-grade products.
